Supreme Lipan 750

Aim Industries, New York

  • Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 149251

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
  • from Radiomuseum.org
  • Model: Supreme Lipan 750 - Aim Industries, New York
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

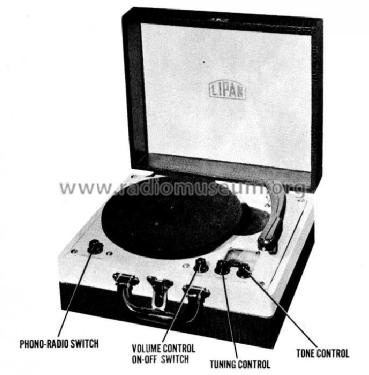

  • The Aim Industries Model Supreme 750 is an AC operated Portable Phono-Radio, Superheterodyne Receiver with Loop Antenna.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
