Transistor Intercom LA-10

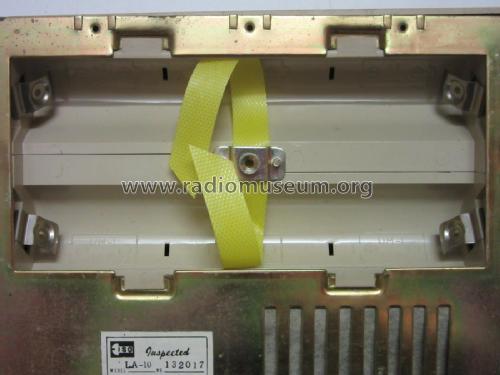

Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395739) Telephony Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395740) Telephony
Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395741) Telephony Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395742) Telephony

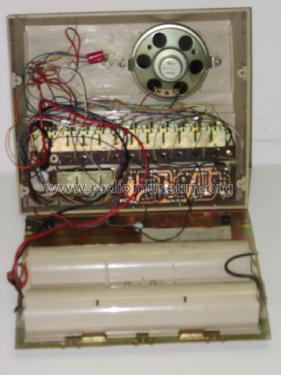

Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395743) Telephony Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395744) Telephony

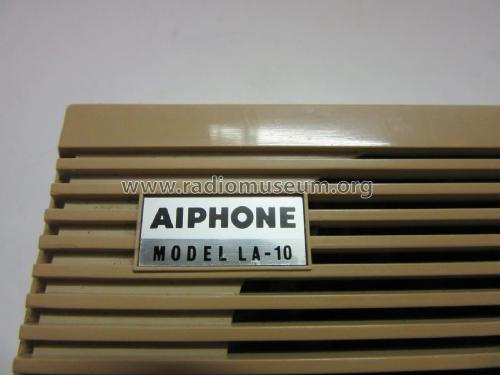

Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395745) Telephony Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395746) Telephony
Use red slider bar for more.
Transistor Intercom LA-10; Aiphone Co., Ltd.; (ID = 2395739) Telephony
Aiphone Co., Ltd.;: Transistor Intercom LA-10 [Telephony] ID = 2395739 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Intercom LA-10, Aiphone Co., Ltd.; Nagoya

Country:  Japan
Manufacturer / Brand:  Aiphone Co., Ltd.; Nagoya
Year: 1968 ?? Category: Telephony - wire and wireless
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Dry Batteries / D: 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out
from Radiomuseum.org Model: Transistor Intercom LA-10 - Aiphone Co., Ltd.; Nagoya
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 225 x 66 x 200 mm / 8.9 x 2.6 x 7.9 inch
Notes

Gegensprech-Zentrale für 10 Nebenstellen. Abgehende Leitung zu den Stellen fest verdrahtet.

Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
