DM-416 Dynamotor

DM-416 Dynamotor ; Aircraft Radio (ID = 1598555) Military DM-416 Dynamotor ; Aircraft Radio (ID = 1598556) Military
DM-416 Dynamotor ; Aircraft Radio (ID = 1598557) Military DM-416 Dynamotor ; Aircraft Radio (ID = 1598558) Military
DM-416 Dynamotor ; Aircraft Radio (ID = 1598559) Military
Use red slider bar for more.
DM-416 Dynamotor ; Aircraft Radio (ID = 1598555) Military
Aircraft Radio: DM-416 Dynamotor [Military] ID = 1598555 900x749
Select picture or schematic to display from thumbnails on the right and click for download.
For model DM-416 Dynamotor, Aircraft Radio Corporation, Boonton, New Jersey

Country:  United States of America (USA)
Manufacturer / Brand:  Aircraft Radio Corporation, Boonton, New Jersey
Year: 1943 Category: Military Equipment (not Re, Tr or RXT)
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: DM-416 Dynamotor - Aircraft Radio Corporation,
Material Metal case
Dimensions (WHD) 6.25 x 5.5 x 4.25 inch / 159 x 140 x 108 mm
Notes

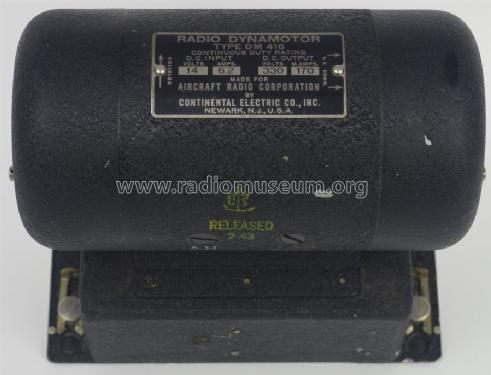

Radio Dynamotor Type DM-416. WW2 Vintage, manufactured for use in aircraft radios.

Manufactured by Continental Electric Co., Inc. Newark. N.J. for the Aircraft Radio Corporation, Booton, New Jersey.

D.C. Input: 14 volts; 6.2 Amps.

D.C. output 330 Volts; 0.17 Amps.

Net weight (2.2 lb = 1 kg) 9.75 lb (9 lb 12 oz) / 4.427 kg

Model page created by Bruce Morgenstern. See "Data change" for further contributors.
