VHF Transmitter T-21

VHF Transmitter T-21 ; Aircraft Radio (ID = 2603136) Mil Tr VHF Transmitter T-21 ; Aircraft Radio (ID = 2603137) Mil Tr
VHF Transmitter T-21 ; Aircraft Radio (ID = 2603139) Mil Tr VHF Transmitter T-21 ; Aircraft Radio (ID = 2603140) Mil Tr
Use red slider bar for more.
VHF Transmitter T-21 ; Aircraft Radio (ID = 2603136) Mil Tr

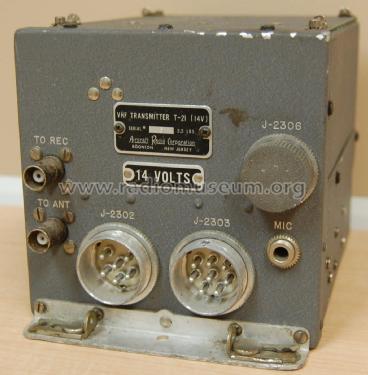

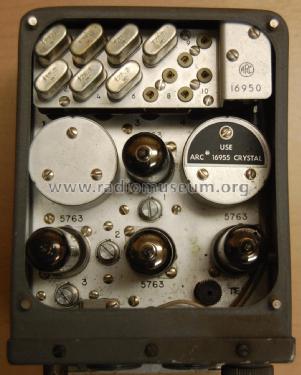

Aircraft Radio: VHF Transmitter T-21 [Mil Tr] ID = 2603136 1390x1414
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF Transmitter T-21, Aircraft Radio Corporation, Boonton, New Jersey

Country:  United States of America (USA)
Manufacturer / Brand:  Aircraft Radio Corporation, Boonton, New Jersey
Year: 1943 ?? Category: Military transmitter
Valves / Tubes 4: 5763 5763 5763 5763
Main principle Transmitter
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Powered by external power supply or a main unit. / 14/262 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: VHF Transmitter T-21 - Aircraft Radio Corporation,
Material Metal case
Shape Rack
Dimensions (WHD) 125 x 120 x 170 mm / 4.9 x 4.7 x 6.7 inch
Notes

Military aircraft VHF Transmitter  116 - 132 MHz range

10 channels (plug-in crystals) in any 2 MHz band

2 watts, AM

Transmission range 10 miles at 10,000 feet or above

Normally used with ARC Type R-19 receiver supplying 14 vdc and 262 vdc

Net weight (2.2 lb = 1 kg) 3.5 lb (3 lb 8 oz) / 1.589 kg

Model page created by George Papaiz. See "Data change" for further contributors.



All listed radios etc. from Aircraft Radio Corporation, Boonton, New Jersey
Here you find 5 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
