- Country
- United States of America (USA)
- Manufacturer / Brand
- Air King Products Co.; Brooklyn (NY)
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31629

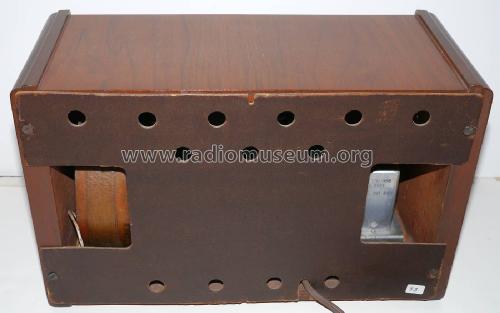

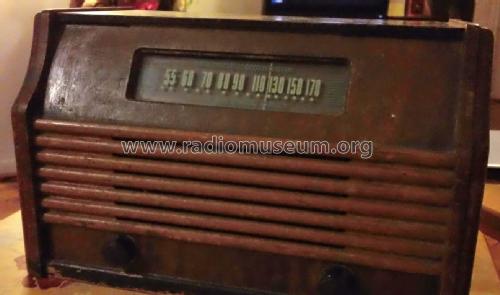

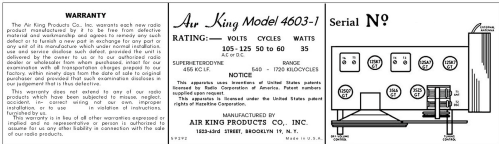

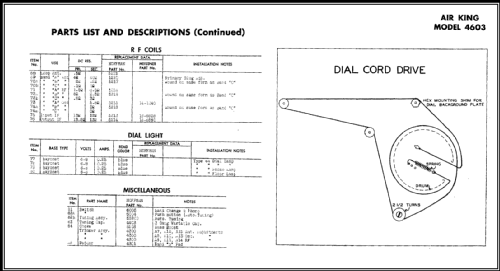

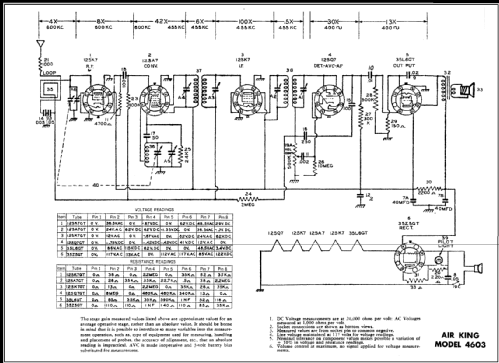

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- Power out
- 1.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4603 - Air King Products Co.;
- Shape
- Tablemodel, with any shape - general.
- Notes

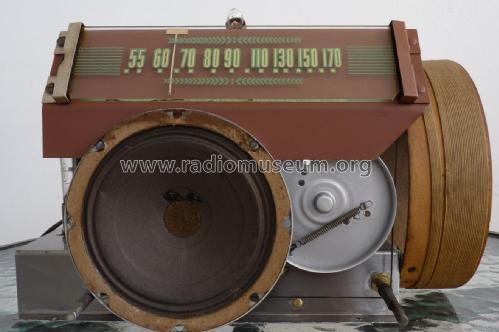

- Tuning 535-1720 kc. Built-in cylinder type loop, illuminated tilt panel dial, provision for outside aerial.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 3, Folder 36)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (August 1946 page 36.)
