- Country
- United States of America (USA)
- Manufacturer / Brand
- Air King Products Co.; Brooklyn (NY)
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 231050
Vista perfil
Vista frente
Vista etiqueta inferior
Vista escala de dial

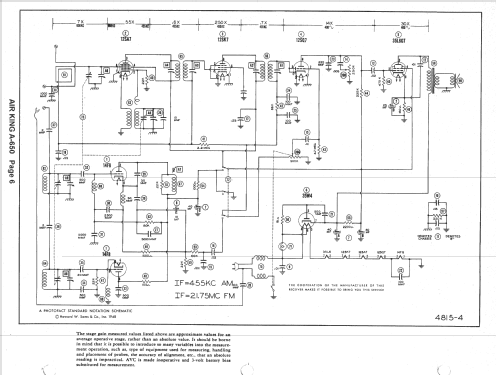

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/21750 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 3 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.62 inch = 11.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: A650 - Air King Products Co.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
AC-DC Operated AM-FM Superheterodyne Receiver with Loop Antenna,
AM: 535-1650 kHz, FM: 88-108 MHz.
- Mentioned in

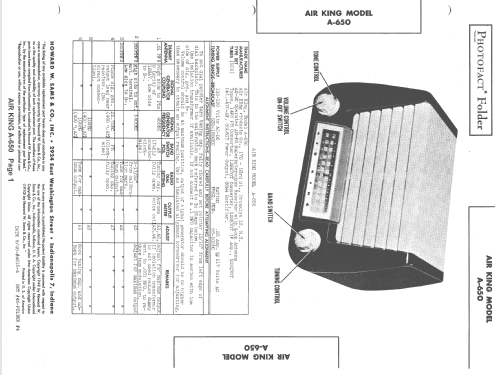

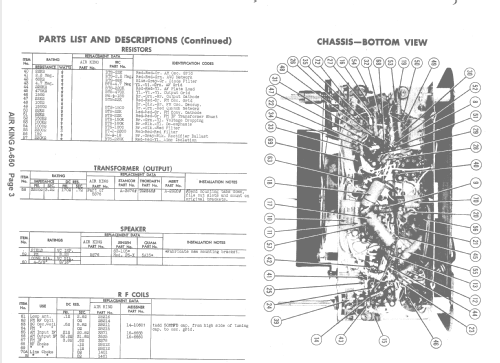

- Photofact Folder, Howard W. SAMS (Vol 5/48 9/48 4815-4 Set 45 Folder 4)
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (7th Edition)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
