A-410 revised

A-410 ; Air King Products Co (ID = 984022) Radio

A-410 ; Air King Products Co (ID = 984023) Radio

A-410 ; Air King Products Co (ID = 984024) Radio

A-410 ; Air King Products Co (ID = 984025) Radio
A-410 ; Air King Products Co (ID = 1310257) Radio A-410 ; Air King Products Co (ID = 984021) Radio
A-410 ; Air King Products Co (ID = 1314321) Radio A-410 ; Air King Products Co (ID = 1314322) Radio
A-410 ; Air King Products Co (ID = 1314323) Radio
Use red slider bar for more.
A-410 ; Air King Products Co (ID = 1310257) Radio
Air King Products Co: A-410 [Radio] ID = 1310257 529x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-410 revised, Air King Products Co.; Brooklyn (NY):

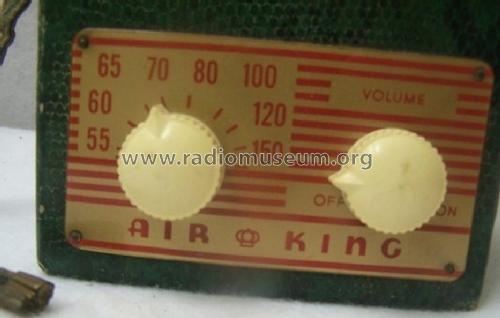

The front of the A410 Camera Radio from Air King. The picture is courtesy of eBay seller luvsradios63.

Country:  United States of America (USA)
Manufacturer / Brand:  Air King Products Co.; Brooklyn (NY)
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3Q4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Details
Power type and voltage Storage and/or dry batteries / 67.5 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A-410 [revised] - Air King Products Co.;
Shape Portable set > 8 inch (also usable without mains)
Notes Battery operated portable superheterodyne Receiver with Camera.
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 40, Date 5/48, Folder 4810-1)

Model page created by Ernst Erb. See "Data change" for further contributors.
