Airline 8 Transistor GEN-1228A

Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327330) Radio Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327334) Radio
Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327331) Radio Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327332) Radio
Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327333) Radio Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327335) Radio
Use red slider bar for more.

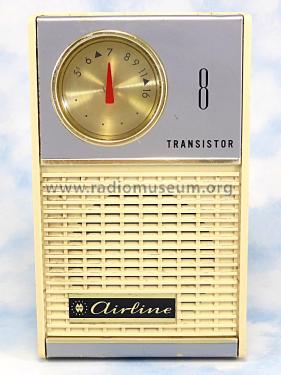

Airline 8 Transistor GEN-1228A; Montgomery Ward & Co (ID = 2327330) Radio
Montgomery Ward & Co: Airline 8 Transistor GEN-1228A [Radio] ID = 2327330 1400x1868
Select picture or schematic to display from thumbnails on the right and click for download.
For model Airline 8 Transistor GEN-1228A, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x AA 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Airline 8 Transistor GEN-1228A - Montgomery Ward & Co. Wards,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 89 x 148 x 40 mm / 3.5 x 5.8 x 1.6 inch
Notes

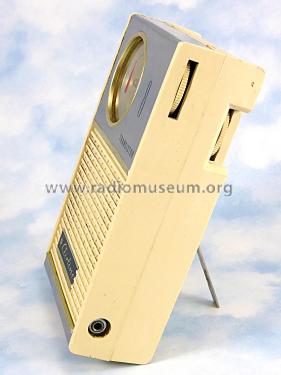

Made in USA.  AM only.  Easel stand in back.  US Civil Defense marks on station dial.

Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (TSM-25 (July, 1963))
Literature/Schematics (2) Collector's Guide To TrR1 Bunis trans.94 (Model info on page 28)

Model page created by Ray Albright. See "Data change" for further contributors.
