- Country
- Australia
- Manufacturer / Brand
- Peal Products, a subsidiary of Airzone (1931) Pty. Ltd., Sydney.
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 288842

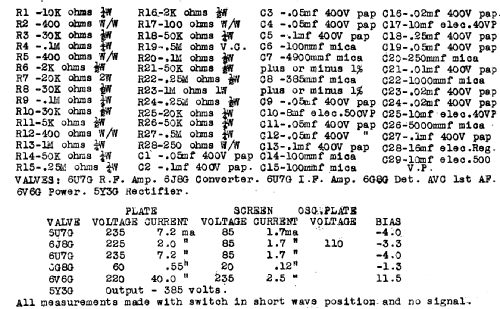

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Peal 62CA - Peal Products, a subsidiary of
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
See also Airzone model 1062A
- Mentioned in
- Mingay's "Radio Diagram & I.F. Index
- Literature/Schematics (1)
- Australian Official Radio Service Manual AORSM (Volume 4, 1941, Page 248.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
