4 Band Stereo Radio Cassette Recorder CS-300Z

4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1603619) Radio 4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1603624) Radio
4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1603632) Radio 4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1604133) Radio
4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1604145) Radio 4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1604153) Radio
4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1604157) Radio 4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1604170) Radio
Use red slider bar for more.
4 Band Stereo Radio Cassette Recorder CS-300Z; Aiwa Co. Ltd.; Tokyo (ID = 1603619) Radio
Aiwa Co. Ltd.; Tokyo: 4 Band Stereo Radio Cassette Recorder CS-300Z [Radio] ID = 1603619 500x333
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band Stereo Radio Cassette Recorder CS-300Z, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-120; 220-240 / D: 6 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: 4 Band Stereo Radio Cassette Recorder CS-300Z - Aiwa Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 475 x 220 x 100 mm / 18.7 x 8.7 x 3.9 inch
Notes

Ausstattung:

2 Lautsprecher Breitband 11 cm plus 2 Hochton- Lautsprecher. Stereomikrofon (jeweils oberhalb der LS).

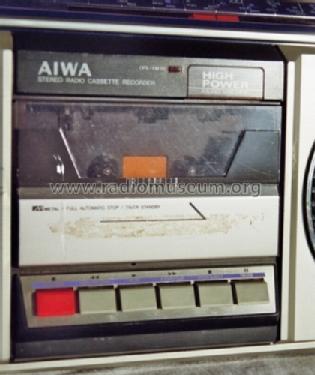

Kassettenteil mit soft- touch Tasten; Tonkopf wird elektr. eingefahren.
Stereo Line Eingang 2x 3,5mm Klinke
Stereo Kopfhörer 6,3mm Klinke
OSC Wahlschalter 3-Stufig.

Made in Singapore.

Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)

Model page created by Uli Storz. See "Data change" for further contributors.
