• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279874

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6LR61: 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.6 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

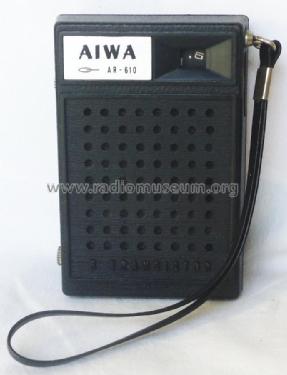

• Model: 6 Transistor AR-610 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 72 x 102 x 29 mm / 2.8 x 4 x 1.1 inch

• Notes

• MW Taschenempfänger mit 6 Transistoren.

  ZF wird mittels Audionschaltung demoduliert.

• Net weight (2.2 lb = 1 kg)
• 0.164 kg / 0 lb 5.8 oz (0.361 lb)

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
