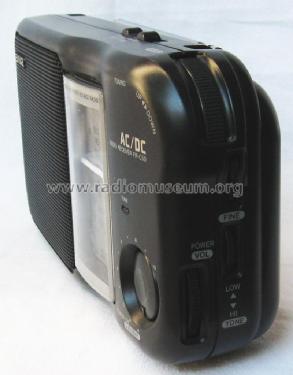

AC/DC Radio Receiver FR-C50EZ
Use red slider bar for more.
Aiwa Co. Ltd.; Tokyo: AC/DC Radio Receiver FR-C50EZ [Radio] ID = 2312493 1024x757
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1999 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Line / Batteries (any type) / 230 / AA: 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch |
| Power out | |
| from Radiomuseum.org | Model: AC/DC Radio Receiver FR-C50EZ - Aiwa Co. Ltd.; Tokyo |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 230 x 115 x 50 mm / 9.1 x 4.5 x 2 inch |
| Notes | AC/DC Dual Power Source Radio mit 58cm dreh- und schwenkbarer Teleskopantenne, ausklappbarem Tragegriff, Tonblende, KW-Feintuning und Tune-LED. Empfangsbereiche: Made in China |
| Net weight (2.2 lb = 1 kg) | 0.670 kg / 1 lb 7.6 oz (1.476 lb) |
Model page created by Holger Struthoff. See "Data change" for further contributors.
