AM/FM Receiver CR-A21

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523737) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523738) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523739) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523750) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523753) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523755) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523757) Radio

AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523758) Radio
AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523179) Radio
Use red slider bar for more.
AM/FM Receiver CR-A21; Aiwa Co. Ltd.; Tokyo (ID = 2523179) Radio
Aiwa Co. Ltd.; Tokyo: AM/FM Receiver CR-A21 [Radio] ID = 2523179 1400x985
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Receiver CR-A21, Aiwa Co. Ltd.; Tokyo:

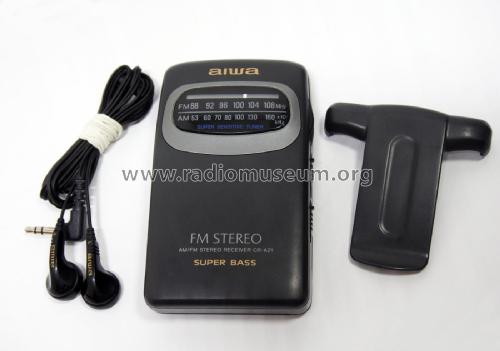

Aiwa CR-A21, front, headphone, belt clip.

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1995 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 V Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out
from Radiomuseum.org Model: AM/FM Receiver CR-A21 - Aiwa Co. Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 86 x 116 x 25 mm / 3.4 x 4.6 x 1 inch
Notes

Aiwa pocket radio CR-A21, Super Bass with earphone jack, FM Mono/Stereo switch, meshed metal speaker grill. Belt clip and in-ear headphones supplied.

Made in Japan

Mentioned in - - Manufacturers Literature (Aiwa product catalog 1995/96)

Model page created by Enrique Palacio. See "Data change" for further contributors.
