• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1999/1999

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 316140

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Batteries / addl. power jack / AA 2 x 1,5 / 6 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

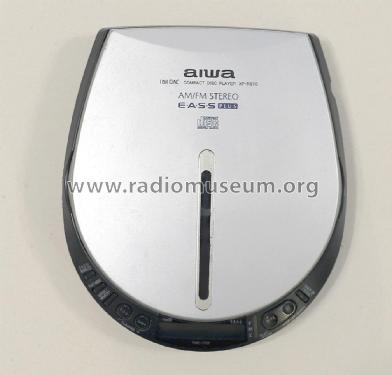

• Model: AM/FM Stereo Compact Disc Player XP-R970 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 143 x 32.5 x 163 mm / 5.6 x 1.3 x 6.4 inch

• Notes

• 1 Bit  DAC. E.A.S.S. Plus (Electric Anti-shock system).

  FM: 87,5 - 108 MHz,

  AM: 530/531 - 1710/1602 kHz.

  Made in China

• Net weight (2.2 lb = 1 kg)
• 0.295 kg / 0 lb 10.4 oz (0.65 lb)
