AM/FM Stereo Radio Cassette Player HS-T23

ID = 256875

Use red slider bar for more.

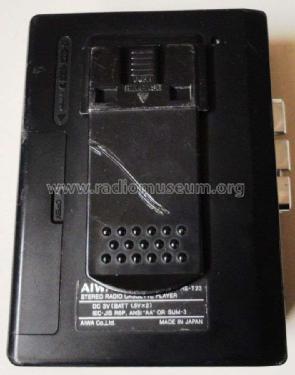

Aiwa Co. Ltd.; Tokyo: AM/FM Stereo Radio Cassette Player HS-T23 [Radio] ID = 2110895 900x800

Select picture or schematic to display from thumbnails on the right and click for download.

For model AM/FM Stereo Radio Cassette Player HS-T23, Aiwa Co. Ltd.; Tokyo:
Ebay.gr auction item no. 112362565242 seller nodas

Country:

Manufacturer / Brand:

Year: 1988 ??

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

Semiconductors present.

Main principle	Superheterodyne (common)
Wave bands	Broadcast (BC) and FM or UHF.
Details	Cassette-Recorder or -Player
Power type and voltage	Batteries / addl. power jack / 2 x 1,5 / 3 Volt
Loudspeaker	- For headphones or amp.
Power out
from Radiomuseum.org	Model: AM/FM Stereo Radio Cassette Player HS-T23 - Aiwa Co. Ltd.; Tokyo
Material	Plastics (no bakelite or catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes	Aiwa Pocketable AM-FM Stereo Cassette Player Model HS-T23. Metal Tape Capability, Belt Clip Stereo Headphones Model Aiwa HP-M16

Model page created by Franz Scharner. See "Data change" for further contributors.
