• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333586

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 2SC2668 2SK161 AN7216 TA7687 TA7342 TA7688 TLR102 SD117

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

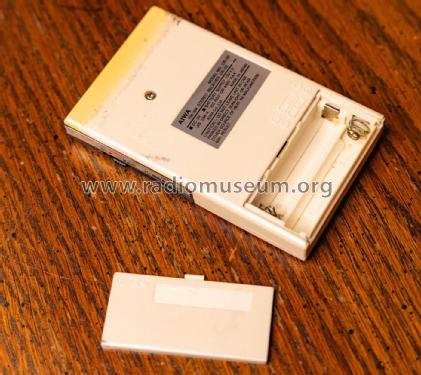

• Dry Batteries / AAA: 2 x 1,5 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

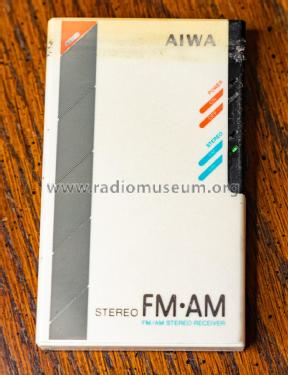

• Model: AM/FM Stereo Receiver CR-2, 02 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Adrian Riesen. See "Data change" for further contributors.

• Other Models

• Here you find 920 models, 871 with images and 159 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
