AM/FM Stereo Receiver CR-D10
Use red slider bar for more.

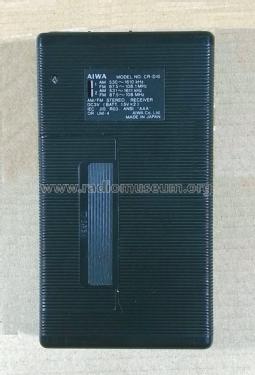

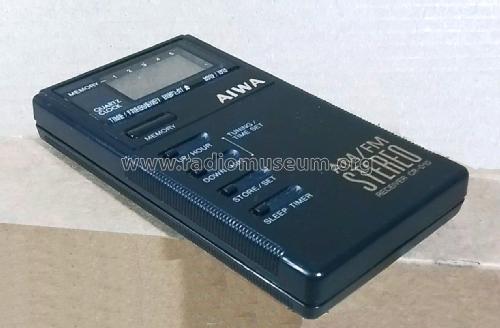

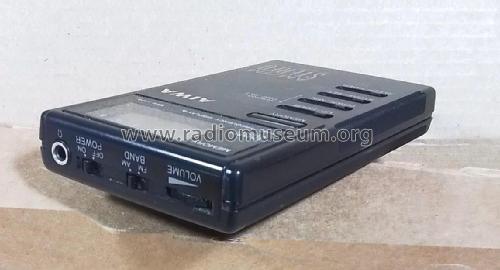

Aiwa Co. Ltd.; Tokyo: AM/FM Stereo Receiver CR-D10 [Radio] ID = 1295394 933x728
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 2000 ?? | Category: Broadcast Receiver - or past WW2 Tuner |
| Main principle | PLL, Phase-locked loop |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 1,5 Volt |
| Loudspeaker | - only for Earphone! |
| Power out | |
| from Radiomuseum.org | Model: AM/FM Stereo Receiver CR-D10 - Aiwa Co. Ltd.; Tokyo |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 55 x 100 x 14 mm / 2.2 x 3.9 x 0.6 inch |
| Notes | Digitaler Synthesizer Tuner, 5 FM / 5 AM Memory Stationstasten, Digital Quartz Clock. Zubehör: Stereohrhörer und Transporttasche. |
Model page created by Ralf Krebs. See "Data change" for further contributors.
