• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 2000 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 360489

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / ААА: 1 × 1.5 Volt

• Loudspeaker
• - only for Earphone!

• Power out
• 0.016 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

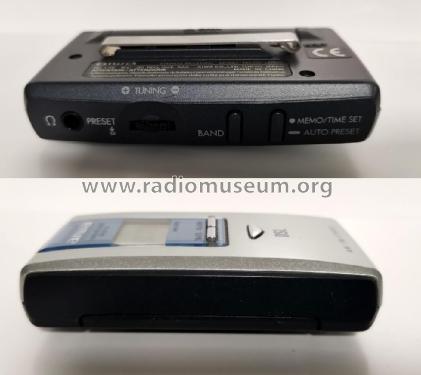

• Model: AM/FM Stereo Receiver CR-LD120 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 42 x 80 x 18 mm / 1.7 x 3.1 x 0.7 inch

• Notes

• Made in China

• Net weight (2.2 lb = 1 kg)
• 0.044 kg / 0 lb 1.6 oz (0.097 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
