AR-813

AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1138467) Radio AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1138466) Radio

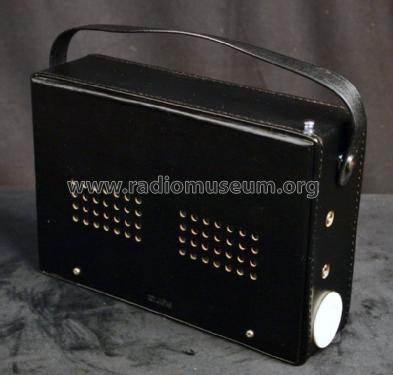

AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1138470) Radio AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1138471) Radio
AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1138473) Radio AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1597921) Radio
Use red slider bar for more.
AR-813; Aiwa Co. Ltd.; Tokyo (ID = 1138467) Radio
Aiwa Co. Ltd.; Tokyo: AR-813 [Radio] ID = 1138467 933x751
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-813, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: AR-813 - Aiwa Co. Ltd.; Tokyo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 160 x 75 mm / 9.4 x 6.3 x 3 inch
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Source of data - - Data from my own collection

Model page created by Peter Kinnaird. See "Data change" for further contributors.
