AR-868L

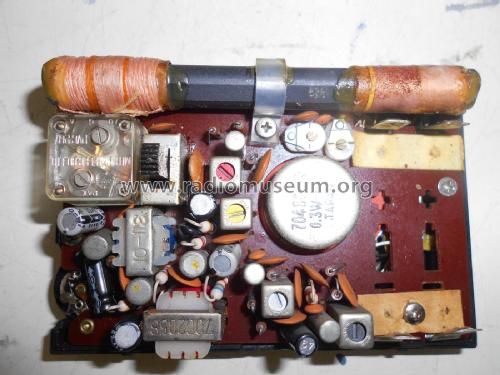

AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 2338726) Radio AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 2338730) Radio
AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 2338728) Radio AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 2338727) Radio
AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 2338729) Radio AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 559747) Radio
AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 1806646) Radio
Use red slider bar for more.
AR-868L; Aiwa Co. Ltd.; Tokyo (ID = 2338726) Radio
Aiwa Co. Ltd.; Tokyo: AR-868L [Radio] ID = 2338726 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-868L, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 × 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.18 W (unknown quality)
from Radiomuseum.org Model: AR-868L - Aiwa Co. Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 75 x 34 mm / 4.3 x 3 x 1.3 inch
Notes MW-LW-Taschenradio mit 6 Transistoren, 1 Diode.
Zubehör: Ohrhörer, Schutztasche, 2 Batterien UM-3(1.5V).
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
