Auto-Return Turntable LX-120

Aiwa Co. Ltd.; Tokyo

  • Year
  • 1986
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 218249

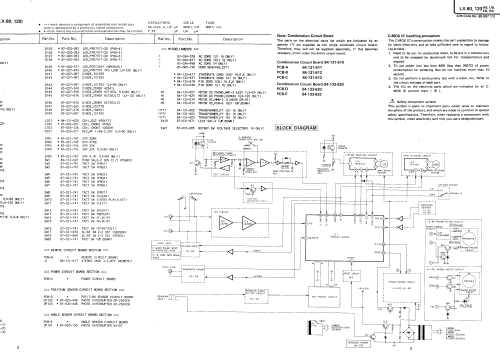

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Auto-Return Turntable LX-120 - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 330 x 85 x 330 mm / 13 x 3.3 x 13 inch
  • Notes
  • Direktantrieb, 33 1/3 und 45 U/min.
  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Source of data
  • -- Original prospect or advert
