• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1987

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 256044

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2SC3327 2SC3327 2SC2458 unknown_tr unknown_tr AN6650 TA8105N

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / AA: 2 x 1.5 / 3 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 0.02 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Auto Reverse Stereo Cassette Player HS-G35 MkII / G330 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 92 x 118 x 37 mm / 3.6 x 4.6 x 1.5 inch

• Notes

• Auto Reverse Stereo Cassette Player HS-G35 Mk II

  4-track, 2-channel stereo player with 3-band equalizer. Basic mechanism: TN-52. Frequency response: 40 - 12,500 Hz (16,000 Hz with metal tape).

  Belt clip. Optional AC power adaptor. Weight including batteries.

  Made in Singapore

• Net weight (2.2 lb = 1 kg)
• 0.310 kg / 0 lb 10.9 oz (0.683 lb)

• Mentioned in

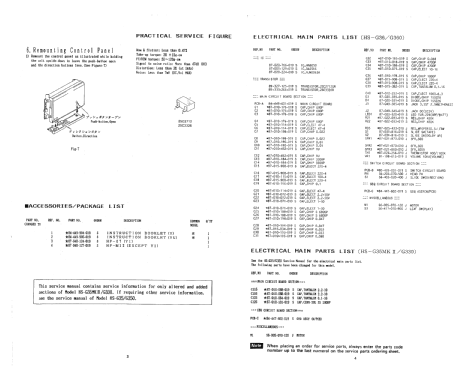

• -- Original-techn. papers.

• Author
• Model page created by Reinhard Keins. See "Data change" for further contributors.
