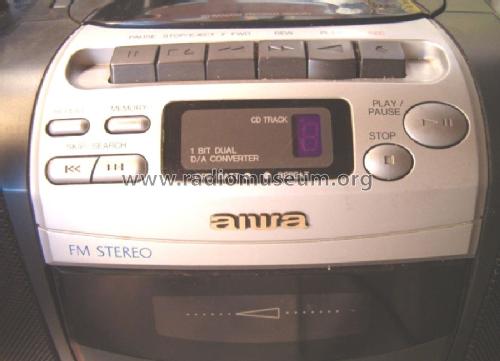

Compact Disc Stereo Radio Cassette Recorder CSD-ES220
Aiwa Co. Ltd.; Tokyo: Compact Disc Stereo Radio Cassette Recorder CSD-ES220 [Radio] ID = 1165807 900x550
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 2001 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | Other Combination - see Notes |
| Power type and voltage | Line / Batteries (any type) / 220 / 8 x 1.5 Volt |
| Loudspeaker | 2 Loudspeakers / Ø 10 cm = 3.9 inch |
| Power out | 10 W (unknown quality) |
| from Radiomuseum.org | Model: Compact Disc Stereo Radio Cassette Recorder CSD-ES220 - Aiwa Co. Ltd.; Tokyo |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 400 x 150 x 190 mm / 15.7 x 5.9 x 7.5 inch |
| Notes | CD Stereo Radio Cassette Recorder; |
| Net weight (2.2 lb = 1 kg) | 3 kg / 6 lb 9.7 oz (6.608 lb) |
Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
