CR-DS15

CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 2112115) Radio CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 2112116) Radio
CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 2112119) Radio CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 2112118) Radio

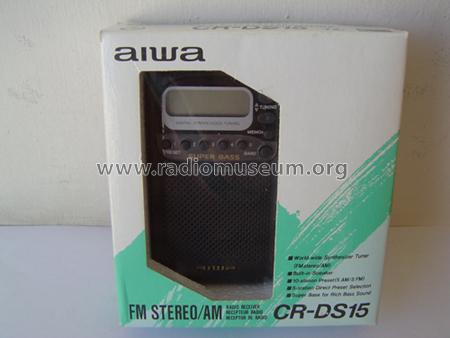

CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 2112117) Radio CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 141589) Radio
CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 141590) Radio CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 141591) Radio
CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 1451862) Radio CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 1451864) Radio
Use red slider bar for more.
CR-DS15; Aiwa Co. Ltd.; Tokyo (ID = 2112115) Radio
Aiwa Co. Ltd.; Tokyo: CR-DS15 [Radio] ID = 2112115 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model CR-DS15, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1994 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: CR-DS15 - Aiwa Co. Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 60 x 104 x 22 mm / 2.4 x 4.1 x 0.9 inch
Notes

Digital synthesized tuning. FM stereo with earphone; 10 station preset, 5 FM and 5 AM. Tuning keys +/-. Switches: power, hold, FM mono/stereo, superbass, exclusion of internal speaker;  earphone socket.
Made in China.

Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Price in first year of sale 65.00 €
Source of data - - Data from my own collection

Model page created by Ervé Leclercq. See "Data change" for further contributors.
