For model FR-C10, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

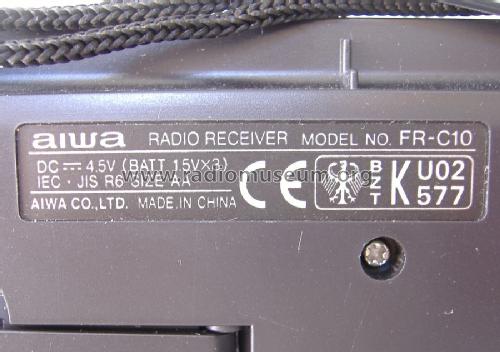

Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out 0.28 W (unknown quality)
from Radiomuseum.org Model: FR-C10 - Aiwa Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 161 x 85 x 41 mm / 6.3 x 3.3 x 1.6 inch
Notes FM 88 - 108 MHz, earphone jack, tuning LED, band selector with indication on the dial.
Net weight (2.2 lb = 1 kg) 0.210 kg / 0 lb 7.4 oz (0.463 lb)
Collectors' prices

Model page created by Felice Nicolini. See "Data change" for further contributors.
