FR-C300 EZ

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483632) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483633) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483634) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483636) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483638) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483639) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483640) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483641) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483642) Radio

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 2483643) Radio
FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 510178) Radio FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 510181) Radio
FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 510179) Radio FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 510180) Radio
FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 510183) Radio
Use red slider bar for more.

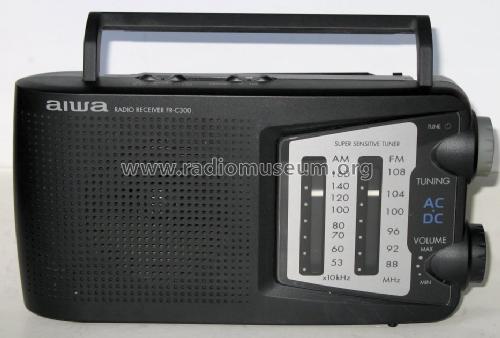

FR-C300 EZ; Aiwa Co. Ltd.; Tokyo (ID = 510178) Radio
Aiwa Co. Ltd.; Tokyo: FR-C300 EZ [Radio] ID = 510178 933x632

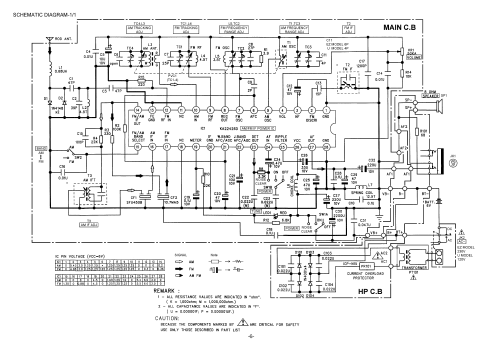

Select picture or schematic to display from thumbnails on the right and click for download.
For model FR-C300 EZ, Aiwa Co. Ltd.; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1988 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230; 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: FR-C300 EZ - Aiwa Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 237 x 120 x 63 mm / 9.3 x 4.7 x 2.5 inch
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
