Stereo Car Cassette Receiver CT-R431MYZ

Stereo Car Cassette Receiver CT-R431MYZ; Aiwa Co. Ltd.; Tokyo (ID = 2486449) Car Radio Stereo Car Cassette Receiver CT-R431MYZ; Aiwa Co. Ltd.; Tokyo (ID = 2486450) Car Radio

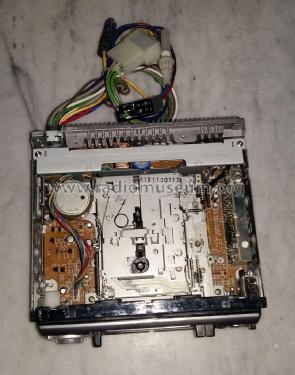

Stereo Car Cassette Receiver CT-R431MYZ; Aiwa Co. Ltd.; Tokyo (ID = 2486451) Car Radio Stereo Car Cassette Receiver CT-R431MYZ; Aiwa Co. Ltd.; Tokyo (ID = 2486452) Car Radio
Stereo Car Cassette Receiver CT-R431MYZ; Aiwa Co. Ltd.; Tokyo (ID = 2486454) Car Radio
Use red slider bar for more.
Stereo Car Cassette Receiver CT-R431MYZ; Aiwa Co. Ltd.; Tokyo (ID = 2486449) Car Radio
Aiwa Co. Ltd.; Tokyo: Stereo Car Cassette Receiver CT-R431MYZ [Car Radio] ID = 2486449 1400x1089
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Car Cassette Receiver CT-R431MYZ, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 2000 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 31: 2SC102 2SC3203 unknown_tr µPD178018 SAA6579 LC7537 LA1787
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 160 W (unknown quality)
from Radiomuseum.org Model: Stereo Car Cassette Receiver CT-R431MYZ - Aiwa Co. Ltd.; Tokyo
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 170 mm / 7 x 2 x 6.7 inch
Notes

Stereo Car Radio with LW, MW and FM. Stereo cassette player. High Bass. Relay control to power antenna or remote control. Car telephon mute. RDS (Radio Data System) and EON (Enhanced Other Network).

Output 4 x 40 W speakers with 4 - 8 Ω impedance.
CD changer control.

31 Transistors, 12 Diodes and 4 ICs, transistors listed only once per type.

Made in Indonesia.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
