Stereo Cassette Deck AD-3300

Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2378197) R-Player Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2349648) R-Player

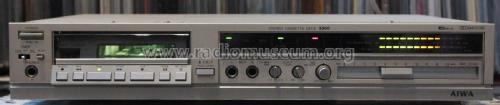

Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2378198) R-Player Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2378194) R-Player

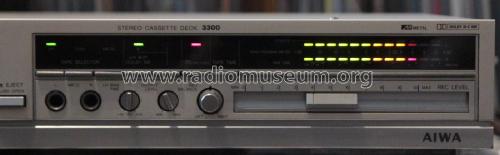

Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2378196) R-Player Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2378195) R-Player
Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 668614) R-Player Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 668615) R-Player
Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 668616) R-Player
Use red slider bar for more.
Stereo Cassette Deck AD-3300; Aiwa Co. Ltd.; Tokyo (ID = 2378197) R-Player
Aiwa Co. Ltd.; Tokyo: Stereo Cassette Deck AD-3300 [R-Player] ID = 2378197 1400x649
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck AD-3300, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1981–1986 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck AD-3300 - Aiwa Co. Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 71 x 316 mm / 16.5 x 2.8 x 12.4 inch
Notes

Frontloading 2-Head Stereo Cassette Deck with Dolby B + C and Metal Tape Capability.
3-Digit Mechanical Counter, Digital Peak-Reading Meters, Record Indicator.
Bias Fine Tune.
Horizontal Tape Transport, Motorized Tape Loading.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 18kHz  (Metal tape)
Signal to Noise Ratio: 78dB  (dolby C)
Wow and Flutter: 0.045%
Input: 50mV (line), 0.3mV (mic)
Output: 0.55V (line)

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 370.00 $

Model page created by Franz Scharner. See "Data change" for further contributors.
