Stereo Cassette Deck AD-3600

Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148680) R-Player Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148675) R-Player
Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 669045) R-Player Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 669046) R-Player
Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 669047) R-Player Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 669048) R-Player
Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148677) R-Player Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148678) R-Player

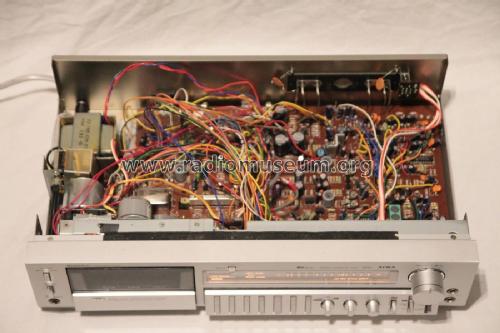

Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148681) R-Player Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148682) R-Player
Use red slider bar for more.
Stereo Cassette Deck AD-3600; Aiwa Co. Ltd.; Tokyo (ID = 2148680) R-Player
Aiwa Co. Ltd.; Tokyo: Stereo Cassette Deck AD-3600 [R-Player] ID = 2148680 1400x575
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck AD-3600, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1981–1986 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck AD-3600 - Aiwa Co. Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 109 x 285 mm / 16.5 x 4.3 x 11.2 inch
Notes

Frontloading 3-Head Stereo Cassette Deck with Dolby B, Double Dolby NR Circuits, MPX Filter, Dolby HX Pro and Metal Tape Capability.
3-Digit Mechanical Counter, Digital Peak-Reading Meters.
Bias Fine Tune.
ADMS (Automatic Demagnetizing System).

Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x combination record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, HX
Frequency Response: 20Hz to 20kHz  (Metal tape)
Signal to Noise Ratio: 68dB  (dolby B)
Wow and Flutter: 0.029%
Input: 50mV (line), 0.3mV (mic)
Output: 0.55V (line)

Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 460.00 $

Model page created by Franz Scharner. See "Data change" for further contributors.
