Stereo Cassette Deck XK-S9000

Aiwa Co. Ltd.; Tokyo

  • Year
  • 1991/1992
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 156030

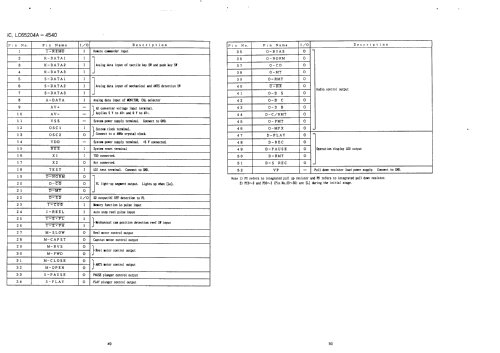

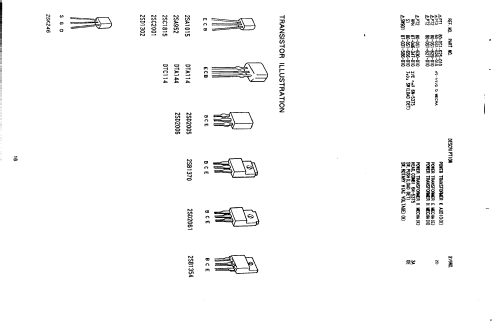

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck XK-S9000 - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 469 x 151 x 415 mm / 18.5 x 5.9 x 16.3 inch
  • Notes
  • Frontloading 3-Head Stereo Cassette Deck with Dolby B + C, Dolby S, MPX Filter, Dolby HX Pro and Metal Tape Capability.
    Digital Peak-Reading Meters, Peak Hold.
    SAMTS (Super Anti Modulation Tape Stabilizer).
    High Frequency Bias Oscillator.
    Wireless Remote Control.
  • Net weight (2.2 lb = 1 kg)
  • 14 kg / 30 lb 13.4 oz (30.837 lb)
  • Price in first year of sale
  • 1,150.00 $
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
