Stereo Cassette Player HS-P505MkII

Stereo Cassette Player HS-P505MkII; Aiwa Co. Ltd.; Tokyo (ID = 685212) R-Player Stereo Cassette Player HS-P505MkII; Aiwa Co. Ltd.; Tokyo (ID = 685213) R-Player
Stereo Cassette Player HS-P505MkII; Aiwa Co. Ltd.; Tokyo (ID = 685214) R-Player Stereo Cassette Player HS-P505MkII; Aiwa Co. Ltd.; Tokyo (ID = 685216) R-Player
Stereo Cassette Player HS-P505MkII; Aiwa Co. Ltd.; Tokyo (ID = 685217) R-Player
Use red slider bar for more.

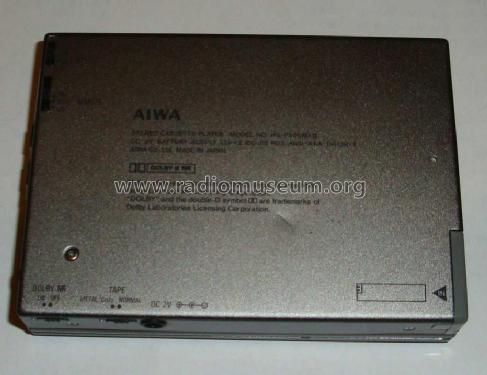

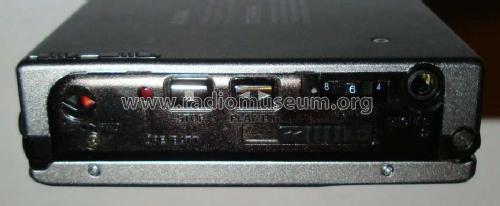

Stereo Cassette Player HS-P505MkII; Aiwa Co. Ltd.; Tokyo (ID = 685212) R-Player
Aiwa Co. Ltd.; Tokyo: Stereo Cassette Player HS-P505MkII [R-Player] ID = 685212 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Player HS-P505MkII, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1992 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 2 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Player HS-P505MkII - Aiwa Co. Ltd.; Tokyo
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 105 x 21 x 77 mm / 4.1 x 0.8 x 3 inch
Notes Tragbarers Cassettengerät nur zur Wiedergabe. Autoreverse, Stereo, DSL Dynamic Super Loudness System An- und Abschaltbar. Anschluß für Fernsteuerung. Dolby an- und Abschaltbar. Bandsortenwähler Metal/CrO2/Normal. Eingebauter NiCd Akku 2V 550mAh Model PB-4. Gewicht ohne Cassette.
Net weight (2.2 lb = 1 kg) 0.199 kg / 0 lb 7 oz (0.438 lb)
Source of data - - Data from my own collection

Model page created by Albrecht Schwaderer. See "Data change" for further contributors.
