Stereo Integrated Amplifier AA-8700

Stereo Integrated Amplifier AA-8700; Aiwa Co. Ltd.; Tokyo (ID = 1224560) Ampl/Mixer Stereo Integrated Amplifier AA-8700; Aiwa Co. Ltd.; Tokyo (ID = 1780276) Ampl/Mixer
Stereo Integrated Amplifier AA-8700; Aiwa Co. Ltd.; Tokyo (ID = 1780277) Ampl/Mixer
Use red slider bar for more.
Stereo Integrated Amplifier AA-8700; Aiwa Co. Ltd.; Tokyo (ID = 1224560) Ampl/Mixer

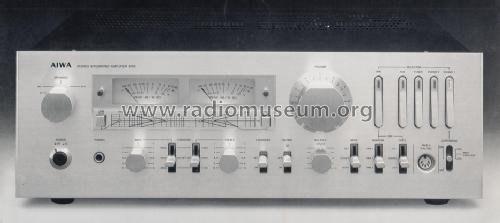

Aiwa Co. Ltd.; Tokyo: Stereo Integrated Amplifier AA-8700 [Ampl/Mixer] ID = 1224560 933x417
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier AA-8700, Aiwa Co. Ltd.; Tokyo:
aus Original Prospekt

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 51:
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 170 W (340 W max.)
from Radiomuseum.org Model: Stereo Integrated Amplifier AA-8700 - Aiwa Co. Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 448 x 156 x 375 mm / 17.6 x 6.1 x 14.8 inch
Notes

Aiwa Stereo Integratd Amplifier Model AA-8700.
Suffix H, E, K
2 x 85 Watt Sinus (4 Ohm), 2 x 75 Watt Sinus (8 Ohm)
2 x 170 Watt Music (4 Ohm), 2 x 150 Watt Music (8 Ohm),
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.01%
Damping factor: 40
Phono1 (MC) IN, Phono1,2 (MM), Tuner IN, AUX IN, Tape INm Main IN
Input sensitivity: 0.22mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MC), 83dB (MM), 100dB (line)
Output: 150mV (line), 30mV (DIN), 0.8V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Power Consumption:
E, K - Model - 550 Watts
H - Model - 260 Watts
Semiconductors: 4 x IC, 8 x FET, 51 x transistors, 58 x diodes, 7 x LED

Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Source of data -- Original prospect or advert

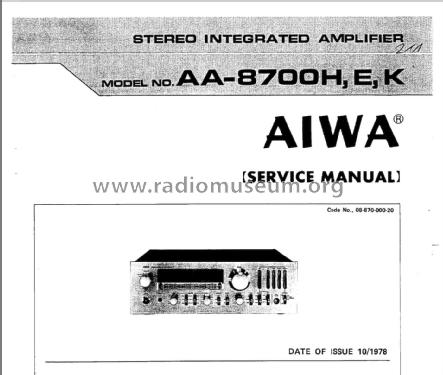

Mentioned in Service Manual Code-No.: 08-870-000-20
Literature/Schematics (1) Funkschau (21/1978, S. 1007)

Model page created by Achim Eisenhuth. See "Data change" for further contributors.
