Stereo Integrated Amplifier MX-70

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483754) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483755) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483756) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483757) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483759) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483760) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483762) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483763) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483764) Ampl/Mixer

Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 2483765) Ampl/Mixer
Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 1780301) Ampl/Mixer Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 1780302) Ampl/Mixer
Use red slider bar for more.
Stereo Integrated Amplifier MX-70; Aiwa Co. Ltd.; Tokyo (ID = 1780301) Ampl/Mixer

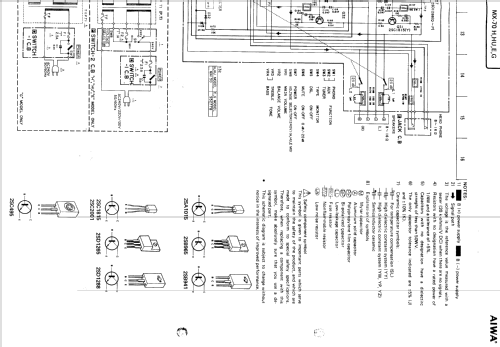

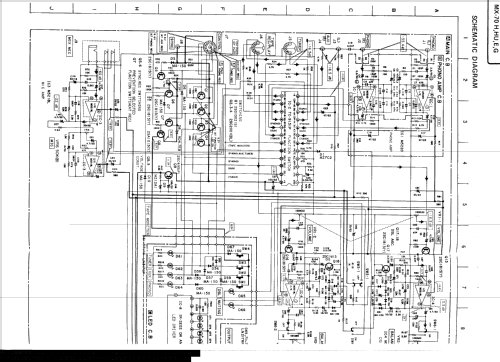

Aiwa Co. Ltd.; Tokyo: Stereo Integrated Amplifier MX-70 [Ampl/Mixer] ID = 1780301 1400x2014
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier MX-70, Aiwa Co. Ltd.; Tokyo:
Service Manual

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1983 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 26:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Stereo Integrated Amplifier MX-70 - Aiwa Co. Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 330 x 71 x 200 mm / 13 x 2.8 x 7.9 inch
Notes

Aiwa Stereo Integrated Amplifier Model MX-70.
Power output:
45 Watts per channel into 8 Ohms - H, HU Model
30 Watts per channel into 8 Ohms - E, G Model

Frequency response: 40Hz to 70kHz
Total harmonic distortion: 0.03%
Damping factor: 40 Input sensitivity: 1mV (mic), 3mV (MM), 150mV (line)
Signal to noise ratio: 79dB (MM), 87dB (line)
Channel separation: 40dB (line)
Speaker load impedance: 8Ω (minimum)
Suffix: H, HU, E, G
Semiconductors:
8x IC's, 40x Diodes, 13x LED's
Power Source:
H, HU, E Models: AC 120V/220-240V Switchable 50/60Hz
G Model: AC 240V, 50/60Hz




Net weight (2.2 lb = 1 kg) 3.650 kg / 8 lb 0.6 oz (8.04 lb)
Mentioned in - - Manufacturers Literature (Service Manual 83-001)
