Tape Recorder TP-30

Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2498377) R-Player
Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2352780) R-Player Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2352781) R-Player
Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2352782) R-Player Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2352783) R-Player

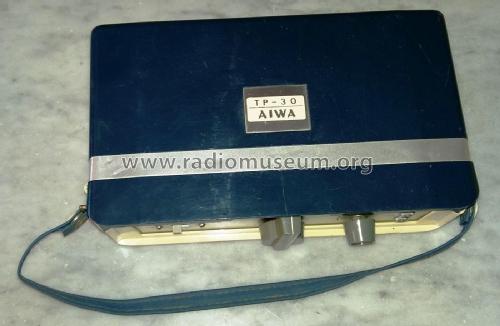

Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2356103) R-Player Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2498378) R-Player
Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2498380) R-Player Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2498381) R-Player
Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2498382) R-Player
Use red slider bar for more.
Tape Recorder TP-30; Aiwa Co. Ltd.; Tokyo (ID = 2352780) R-Player
Aiwa Co. Ltd.; Tokyo: Tape Recorder TP-30 [R-Player] ID = 2352780 1400x1377
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tape Recorder TP-30, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1970 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: 2SB113 2SB116 2SB98 2SB98
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Dry Batteries / C: 2 x 1,5 + PP3: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Tape Recorder TP-30 - Aiwa Co. Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 70 x 140 mm / 9.1 x 2.8 x 5.5 inch
Notes

A little reel to reel recorder/player without capstan. 2 motors.

Two "C" 1,5 V batteries in parallel for the motors and one 9 V for ampli.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
