TP-716

TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276711) R-Player TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276717) R-Player
TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276716) R-Player TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276713) R-Player
TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276712) R-Player TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276714) R-Player
TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276718) R-Player TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276719) R-Player
TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276720) R-Player TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276721) R-Player
Use red slider bar for more.
TP-716; Aiwa Co. Ltd.; Tokyo (ID = 2276711) R-Player
Aiwa Co. Ltd.; Tokyo: TP-716 [R-Player] ID = 2276711 1400x1114
Select picture or schematic to display from thumbnails on the right and click for download.
For model TP-716, Aiwa Co. Ltd.; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1962 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Details Tape Recorder

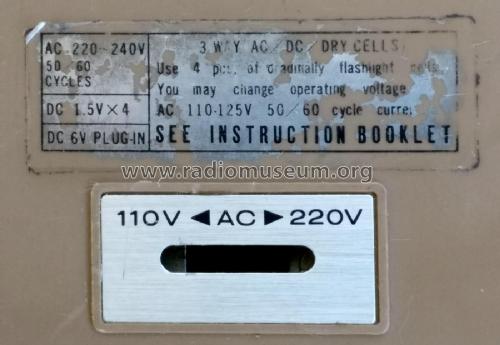

Power type and voltage Line plus power jack, mostly with battery or storage battery / 110; 220 / 6 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: TP-716 - Aiwa Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 75 x 250 mm / 9.4 x 3 x 9.8 inch
Notes kleines tragbares Tonbandgerät, max. Spulendurchmesser 8,5cm, Capstan 9,5cm/sec, Eingänge: schaltbares Mikrofon/Aux über Klinkenbuchsen 3,5mm, Kombi-Zeigerinstrument für Anzeige Record Level/ Batteriezustand, Buchse für ext. Netzgerät (6Volt/DC), Tonregler vorhanden,
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
