Multi band radio cassette TPR-300A Europe

Aiwa Co. Ltd.; Tokyo

  • Year
  • 1977 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 121052

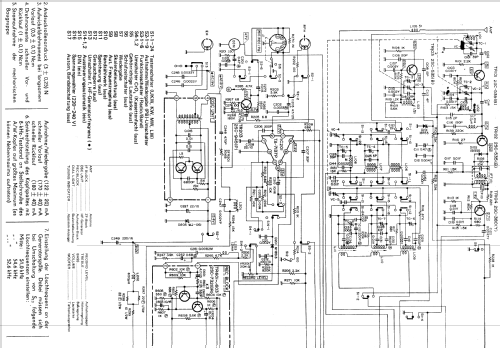

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 16
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 4.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

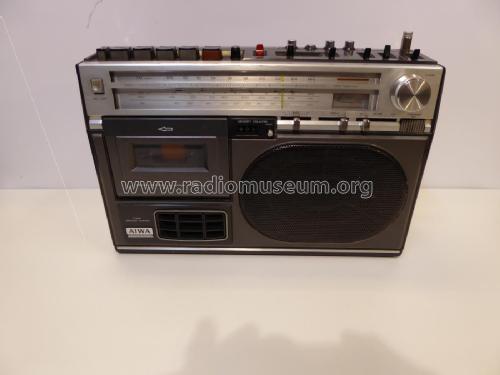

  • Model: Multi band radio cassette TPR-300A [Europe] - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 359 x 277 x 106 mm / 14.1 x 10.9 x 4.2 inch
  • Notes

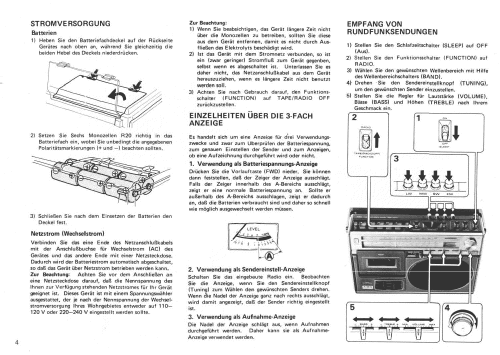

  • 4 ICs. The AIWA Multi band radio cassette TPR-300A can operate on AC or 6 x 1.5V dry cell batteries. There are also two other versions without long wave but 2 SW: TPR-300AC for AC 120 V only, with car adapter to use the unit as a car radio. The model TPR-300AH is mentioned in the same documentation as for AC 110-120 / 220-240 V operation (switchable). There is one oval speaker 184x127 mm (woofer) and a 52 mm tweeter. There is probably also a model TPR-300A for the USA with the same waves as the other mentioned instead of LW. See there.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Literature/Schematics (1)
  • Radio-Fernsehen-Elektronik, Heft 6/1980
  • Author
  • Model page created by Harry Gehrmann. See "Data change" for further contributors.
