AJS Three-Valve Receiver Type E

AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539026) Radio AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2428329) Radio
AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539027) Radio AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539028) Radio
AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539029) Radio AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539030) Radio
AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539031) Radio AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539032) Radio
AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539033) Radio AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539034) Radio
Use red slider bar for more.

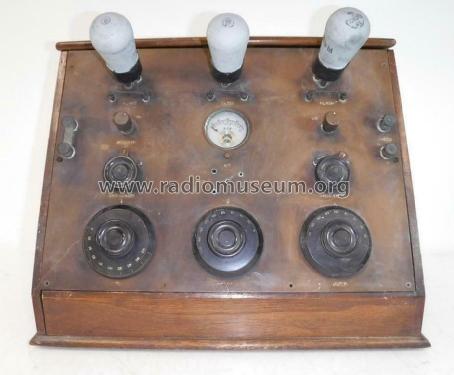

AJS Three-Valve Receiver Type E; AJS; A.J. Stevens & (ID = 2539026) Radio
AJS; A.J. Stevens &: AJS Three-Valve Receiver Type E [Radio] ID = 2539026 1400x1154
Select picture or schematic to display from thumbnails on the right and click for download.
For model AJS Three-Valve Receiver Type E, AJS; A.J. Stevens & Co Ltd; Wolverhampton:
eBay item number:153949648098 The set pictured was advertised on Ebay for $999.99 in a listing that ended 6/03/2020. It did not sell.

Country:  Great Britain (UK)
Manufacturer / Brand:  AJS; A.J. Stevens & Co Ltd; Wolverhampton
Brand

A.J.S.
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3:
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AJS Three-Valve Receiver Type E - AJS; A.J. Stevens & Co Ltd;
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, slant panel.
Dimensions (WHD) 15.5 x 12.5 x 9 inch / 394 x 318 x 229 mm
Notes

Slant panel model, available in a walnut or mahogany case. Tuned RF, Detector, and Audio stage, capable to drive a Loudspeaker

Wave length range 150 to 20,000 meters.

Price in first year of sale 22.00 £
External source of data Reinhard Bittner
