Table Model TM2 F6

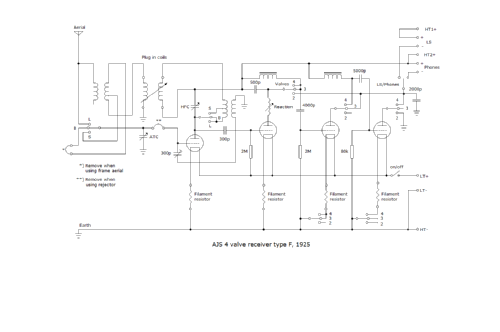

Table Model TM2 F6; AJS; A.J. Stevens & (ID = 1943331) Radio

Table Model TM2 F6; AJS; A.J. Stevens & (ID = 2245696) Radio
Table Model TM2 F6; AJS; A.J. Stevens & (ID = 2245697) Radio Table Model TM2 F6; AJS; A.J. Stevens & (ID = 2245698) Radio
Table Model TM2 F6; AJS; A.J. Stevens & (ID = 423875) Radio Table Model TM2 F6; AJS; A.J. Stevens & (ID = 1037168) Radio
Table Model TM2 F6; AJS; A.J. Stevens & (ID = 1942839) Radio Table Model TM2 F6; AJS; A.J. Stevens & (ID = 1942840) Radio
Table Model TM2 F6; AJS; A.J. Stevens & (ID = 1942841) Radio Table Model TM2 F6; AJS; A.J. Stevens & (ID = 1942844) Radio
Use red slider bar for more.
Table Model TM2 F6; AJS; A.J. Stevens & (ID = 2245697) Radio
AJS; A.J. Stevens &: Table Model TM2 F6 [Radio] ID = 2245697 1400x1995
Select picture or schematic to display from thumbnails on the right and click for download.
For model Table Model TM2 F6, AJS; A.J. Stevens & Co Ltd; Wolverhampton:
Gerät steht in einem Museum.

Country:  Great Britain (UK)
Manufacturer / Brand:  AJS; A.J. Stevens & Co Ltd; Wolverhampton
Brand

A.J.S.
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4:
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Table Model TM2 F6 - AJS; A.J. Stevens & Co Ltd;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 21.25 x 13.25 x 19.5 inch / 540 x 337 x 495 mm
Notes The TM2 Type F6 was available in oak, or mahogany. It is a table model with lid. With or without voltmeter.
Price in first year of sale 30.00 £
External source of data Radios von gestern, Seite 90 Bild
Mentioned in Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from AJS; A.J. Stevens & Co Ltd; Wolverhampton
Here you find 34 models, 21 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
