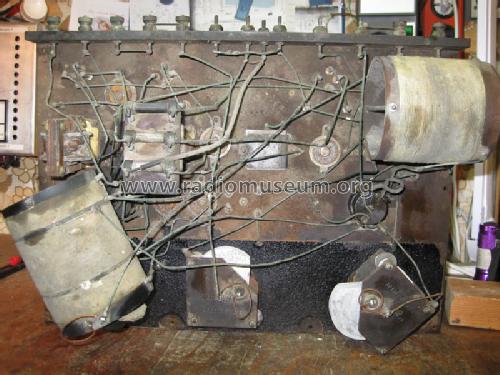

Slant Panel F6

Slant Panel F6; AJS; A.J. Stevens & (ID = 1735729) Radio Slant Panel F6; AJS; A.J. Stevens & (ID = 404575) Radio
Slant Panel F6; AJS; A.J. Stevens & (ID = 1505932) Radio Slant Panel F6; AJS; A.J. Stevens & (ID = 1505933) Radio
Slant Panel F6; AJS; A.J. Stevens & (ID = 1603266) Radio
Use red slider bar for more.
Slant Panel F6; AJS; A.J. Stevens & (ID = 1735729) Radio
AJS; A.J. Stevens &: Slant Panel F6 [Radio] ID = 1735729 1200x1088
Select picture or schematic to display from thumbnails on the right and click for download.
For model Slant Panel F6, AJS; A.J. Stevens & Co Ltd; Wolverhampton:
AJS F6

Country:  Great Britain (UK)
Manufacturer / Brand:  AJS; A.J. Stevens & Co Ltd; Wolverhampton
Brand

A.J.S.
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4:
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Slant Panel F6 - AJS; A.J. Stevens & Co Ltd;
Material TUBES VISIBLE, material not known.
Shape Tablemodel, slant panel.
Notes

Available in oak or mahogany. With or without voltmeter. coils see here.

External source of data Bev Parker

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from AJS; A.J. Stevens & Co Ltd; Wolverhampton
Here you find 34 models, 21 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
