Symphony Seven (7) Bureau Model

Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 523131) Radio
Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 464943) Radio Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 464945) Radio
Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 464946) Radio Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 464947) Radio
Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 464948) Radio Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 525172) Radio
Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 526223) Radio Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 526224) Radio
Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 526225) Radio
Use red slider bar for more.
Symphony Seven Bureau Model; AJS; A.J. Stevens & (ID = 464943) Radio
AJS; A.J. Stevens &: Symphony Seven Bureau Model [Radio] ID = 464943 261x480

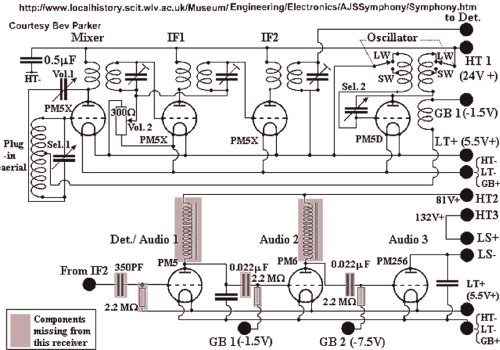

Select picture or schematic to display from thumbnails on the right and click for download.
For model Symphony Seven (7) Bureau Model, AJS; A.J. Stevens & Co Ltd; Wolverhampton

Country:  Great Britain (UK)
Manufacturer / Brand:  AJS; A.J. Stevens & Co Ltd; Wolverhampton
Brand

A.J.S.
Year: 1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7:
Main principle Superheterodyne (common); ZF/IF 260 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Symphony Seven Bureau Model - AJS; A.J. Stevens & Co Ltd;
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 545 x 1010 x 370 mm / 21.5 x 39.8 x 14.6 inch
Notes Mahogany case lidded, free standing on high (18")legs. The receiver came complete with a Standard horn speaker, two frame aerials (one for LW and one for BC) and batteries.
Features the new disk drive dials.
Price in first year of sale 67.00 £
External source of data Seen in Olens Radiomuseum, Olen, Belgium

Model page created by Georges Van Campenhout. See "Data change" for further contributors.



All listed radios etc. from AJS; A.J. Stevens & Co Ltd; Wolverhampton
Here you find 34 models, 21 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
