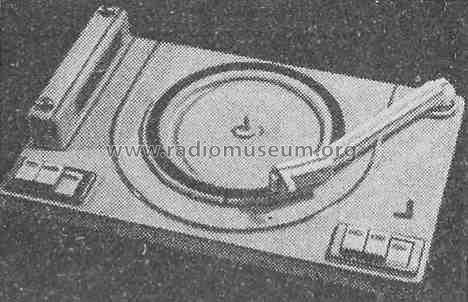

Klaviertasten-Laufwerk L103
Akustic Kurt Schröder, Berlin-Neukölln
- Country
- Germany
- Manufacturer / Brand
- Akustic Kurt Schröder, Berlin-Neukölln
- Year
- 1953/1954
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 111347
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: Klaviertasten-Laufwerk L103 - Akustic Kurt Schröder, Berlin-
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 400 x 110 x 250 mm / 15.7 x 4.3 x 9.8 inch
- Notes
-
Tourenzahlen: 33/45/78 UpM; Kristall-System mit Doppel-Saphir; Klangblende; Flutlichtbeleuchtung.
Siehe auch
- Föller Klaviertasten-Fonochassis L103
- Schröder Drucktasten-Chassis 253
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Price in first year of sale
- 128.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1953/54
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
