Impulse Recorder 30-K21

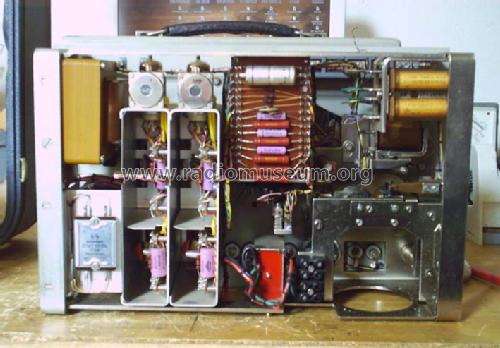

Impulse Recorder 30-K21; Albis, Albiswerke AG (ID = 747168) Equipment Impulse Recorder 30-K21; Albis, Albiswerke AG (ID = 747169) Equipment
Use red slider bar for more.
Impulse Recorder 30-K21; Albis, Albiswerke AG (ID = 747168) Equipment
Albis, Albiswerke AG: Impulse Recorder 30-K21 [Equipment] ID = 747168 709x531
Select picture or schematic to display from thumbnails on the right and click for download.
For model Impulse Recorder 30-K21, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1967 Category: Service- or Lab Equipment
Valves / Tubes 2: ECC85 ECC85
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 165; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Impulse Recorder 30-K21 - Albis, Albiswerke AG Siemens
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 260 x 120 mm / 15.7 x 10.2 x 4.7 inch
Notes Impulse recorder for metallic paper band. Operating at a "minimum of 1000V".
Source of data - - Data from my own collection

Model page created by Jeffrey Fisher. See "Data change" for further contributors.
