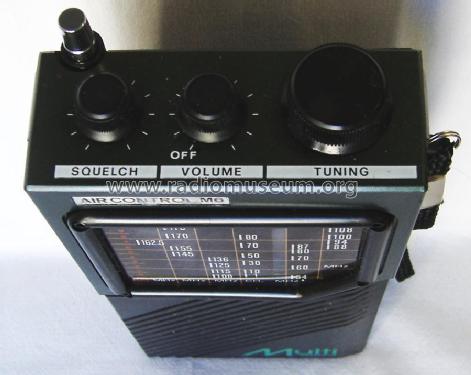

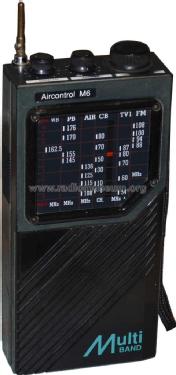

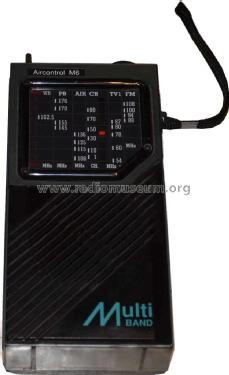

Air Control M6

Air Control M6; Albrecht Marke, (ID = 1785137) Amateur-R Air Control M6; Albrecht Marke, (ID = 1338563) Amateur-R
Air Control M6; Albrecht Marke, (ID = 1338886) Amateur-R Air Control M6; Albrecht Marke, (ID = 1338890) Amateur-R
Air Control M6; Albrecht Marke, (ID = 1338891) Amateur-R Air Control M6; Albrecht Marke, (ID = 1338895) Amateur-R
Air Control M6; Albrecht Marke, (ID = 1338892) Amateur-R Air Control M6; Albrecht Marke, (ID = 1338893) Amateur-R
Air Control M6; Albrecht Marke, (ID = 1338564) Amateur-R Air Control M6; Albrecht Marke, (ID = 1785139) Amateur-R
Use red slider bar for more.
Air Control M6; Albrecht Marke, (ID = 1785137) Amateur-R
Albrecht Marke,: Air Control M6 [Amateur-R] ID = 1785137 490x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Air Control M6, Albrecht (Marke), Lütjensee

Country:  Germany
Manufacturer / Brand:  Albrecht (Marke), Lütjensee
Brand

Alan Electronics
Year: 1975 ?? Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Air Control M6 - Albrecht Marke, Lütjensee
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 100 x 210 x 50 mm / 3.9 x 8.3 x 2 inch
Notes

Multiband Portable Radio Receiver,

Wellenbereiche: WB 162.5 MHz, PB 145 - 176 MHz, AIR 108 - 136 MHz, CB Kanäle 1 - 80, TV1 54 - 87 MHz, FM 88 - 108 MHz

Net weight (2.2 lb = 1 kg) 0.335 kg / 0 lb 11.8 oz (0.738 lb)
Collectors' prices

Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
