Albrecht mobile/desktop scanner AE 355M

Albrecht mobile/desktop scanner AE 355M; Albrecht Marke, (ID = 2019043) Receiver-C Albrecht mobile/desktop scanner AE 355M; Albrecht Marke, (ID = 2019044) Receiver-C

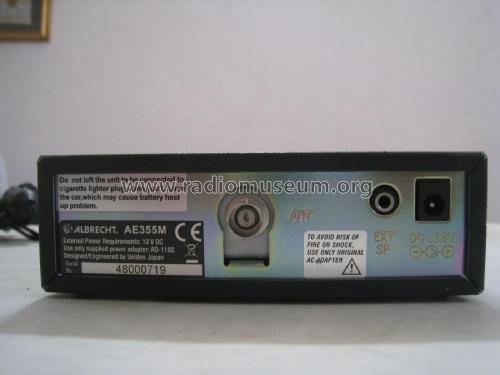

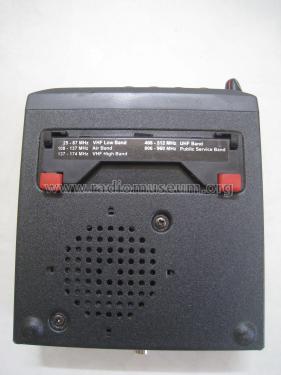

Albrecht mobile/desktop scanner AE 355M; Albrecht Marke, (ID = 2019045) Receiver-C Albrecht mobile/desktop scanner AE 355M; Albrecht Marke, (ID = 2019046) Receiver-C
Use red slider bar for more.
Albrecht mobile/desktop scanner AE 355M; Albrecht Marke, (ID = 2019043) Receiver-C
Albrecht Marke,: Albrecht mobile/desktop scanner AE 355M [Receiver-C] ID = 2019043 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Albrecht mobile/desktop scanner AE 355M, Albrecht (Marke), Lütjensee

Country:  Germany
Manufacturer / Brand:  Albrecht (Marke), Lütjensee
Brand

Alan Electronics
Year: 2011 ?? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Wave Bands given in the notes.
Details Scanner - multiband or special
Power type and voltage Powered by external power supply or a main unit. / DC 13.8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Albrecht mobile/desktop scanner AE 355M - Albrecht Marke, Lütjensee
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 132 x 42 x 140 mm / 5.2 x 1.7 x 5.5 inch
Notes

Albrecht AE355M mobile/desktop scanner.
Identical to UNIDEN Bearcat UBC355CLT

1 Private bank, and 7 preset banks set as follows:

  1. Freenet FRN (6 presets and 100 programmable channels)
  2. PMR: 8 x European PMR446 Channels
  3. AIR: 3840 preset worldwide channels (108.00 - 136.9916 MHz)
  4. MARINE: 57 preset International Marine Channels
  5. CB AM: 600 preset CB channels in AM mode (25.000 - 27.995 MHz)
  6. 10m Amateur Band (400 channels FM from 28.000 - 29.995 MHz)
  7. PRIVATE: 100 fully user programmable channels

Multi choice step sizes - 5 / 6.25 / 8.33 / 10 / 12.5 / 20kHz
Fast short range scan of over 100m range
Skip feature
Turbo Search - up to 180 steps per second, channel or frequency search
23 x selectable frequency bands from CB to 900MHz
Clock display
Squelch and Volume controls
Extension speaker socket
300 memory channels
Install indoors or in vehicle

Frequency bands:

  • 25.000 - 27.995 MHz
  • 28.000 - 69.9950 MHz
  • 70.0000 - 87.2950 MHz
  • 108.0000 - 136.9916 MHz
  • 137.0000 - 147.9950 MHz
  • 148.0000 - 174.0000MHz
  • 406.0000 - 512.0000 MHz
  • 806.0000 - 960.0000 MHz

The AE-355M is also equipped with "Close Call" feature to search and find local transmissions and transfer them to the display for instant use.

Package includes:

  • 1 x AE-355M scanner
  • 1 x telescopic antenna
  • 1 x mains AC adaptor 230 V
  • 1 x car 12 V power lead with cigar plug fitted
  • 12 VDC power-cord "open ended" type
  • mobile mounting bracket
  • manual

Made in Japan.

Net weight (2.2 lb = 1 kg) 0.640 kg / 1 lb 6.6 oz (1.41 lb)
