Alpha 4000 CB-Funk

Alpha 4000 CB-Funk; Albrecht Marke, (ID = 1387133) Citizen
Alpha 4000 CB-Funk; Albrecht Marke, (ID = 2386692) Citizen Alpha 4000 CB-Funk; Albrecht Marke, (ID = 2386691) Citizen
Alpha 4000 CB-Funk; Albrecht Marke, (ID = 2386693) Citizen Alpha 4000 CB-Funk; Albrecht Marke, (ID = 1387134) Citizen
Alpha 4000 CB-Funk; Albrecht Marke, (ID = 1387135) Citizen
Use red slider bar for more.
Alpha 4000 CB-Funk; Albrecht Marke, (ID = 2386692) Citizen
Albrecht Marke,: Alpha 4000 CB-Funk [Citizen] ID = 2386692 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpha 4000 CB-Funk, Albrecht (Marke), Lütjensee

Country:  Germany
Manufacturer / Brand:  Albrecht (Marke), Lütjensee
Brand

Alan Electronics
Year: 1980 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present. 2SC2724 or. 2SC1539 or. 2SC829 2SC2724 or. 2SC945 2SC2724 or. 2SC1539 or. 2SC829 2SC2724 or. 2SC710 or. 2SC2001 2SC1846 or. 2SC1873 or. 2SC1760 2SC1974 or. 2SC1909 or. 2SC1308 2SC1318 2SA733 2SC2724 or. 2SC1675 2SC2724 or. 2SC1675 2SC2724 or. 2SC945 2SC2724 or. 2SC945 2SC945 2SA733 2SC2724 or. 2SC945 2SC945 2SC945 2SC846 2SC945 2SC2724 2SC1383 2SC2724 LC7132 RC4558 or. RC4559 BA403 TA7205
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 13,8 DC Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out 4 W (undistorted)
from Radiomuseum.org Model: Alpha 4000 CB-Funk - Albrecht Marke, Lütjensee
Material Metal case
Notes
  • CB-Mobilfunkgerät
  • 40 Kanäle FM
  • 4 Watt HF-Ausgangsleistung

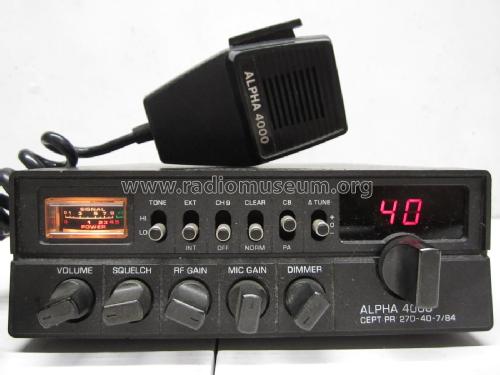

  • Bedienelemente an der Front für
    • Ein/Aus
    • Lautstärke
    • Squelch
    • RF-Gain
    • Mic-Gain
    • Dimmer
    • Tonblende Hi/Lo
    • Lautsprecher intern/extern
    • Clear/Normal
    • Kanal 9-Schalter
    • CB/PA (Außenlautsprecher)
    • Delta-Tune
    • Kanalwahlschalter 40 stufig
  • LED Kanalanzeige (rot)
  • Anschlüsse
    • 4-Pol Mikrofonbuchse
    • Externer Lautsprecher 3,5mm Klinke mono
    • PA-Buchse 3,5 Klinke mono
    • PL-Antennenbuchse
    • 2-polige Japan DC-Kleinspannungsbuchse f. Stromversorgung 13,8V

Model page created by Gerhard Hödl. See "Data change" for further contributors.
