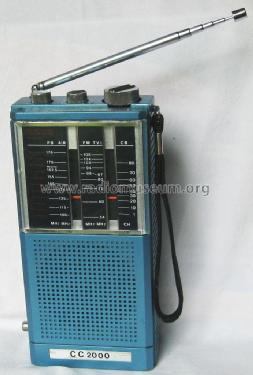

CB-TV, FM-AIR-WB-PB CC 2000
Use red slider bar for more.
Albrecht Marke,: CB-TV, FM-AIR-WB-PB CC 2000 [Radio] ID = 1635800 933x1244
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Alan Electronics | ||||
|---|---|---|---|---|---|
| Year: 1990 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
| Main principle | Super-Heterodyne (Super in general) |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Dry Batteries / 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: CB-TV, FM-AIR-WB-PB CC 2000 - Albrecht Marke, Lütjensee |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |

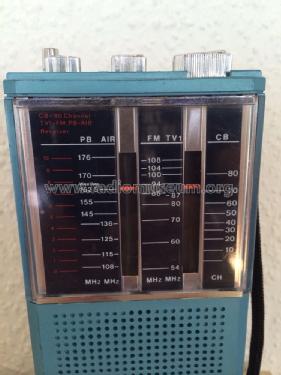

| Notes | Multiband-Empfänger mit den Bereichen: CB-TV, FM-AIR-WB-PB. |
Model page created by a member from A. See "Data change" for further contributors.
