Internet / DAB / FM Radio DR-315

Internet / DAB / FM Radio DR-315; Albrecht Marke, (ID = 1160442) Radio
Use red slider bar for more.
Internet / DAB / FM Radio DR-315; Albrecht Marke, (ID = 1160442) Radio

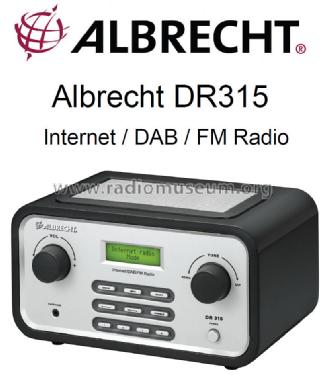

Albrecht Marke,: Internet / DAB / FM Radio DR-315 [Radio] ID = 1160442 817x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Internet / DAB / FM Radio DR-315, Albrecht (Marke), Lütjensee:
Internet picture.

Country:  Germany
Manufacturer / Brand:  Albrecht (Marke), Lütjensee
Brand

Alan Electronics
Year: 2009 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle DSP, Digital Signal Processor
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details Other Combination - see Notes
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker 2 Loudspeakers / Ø 3 inch = 7.6 cm
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Internet / DAB / FM Radio DR-315 - Albrecht Marke, Lütjensee
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 170 x 148 mm / 11 x 6.7 x 5.8 inch
Notes

Albrecht Internet / DAB / FM Radio DR315

Total Output Power: 10 Watt / Playback Formats: MP3 / Inputs: Line In, Ethernet, WiFi /

Outputs: Headphone Output
Frequency Ranges: Internet radio, FM, DAB / Tuner Type: Digital.

Net weight (2.2 lb = 1 kg) 2.680 kg / 5 lb 14.4 oz (5.903 lb)
Price in first year of sale 200.00 GBP

Model page created by Paul FOK. See "Data change" for further contributors.
