Linear Amplifier L92

Linear Amplifier L92; Albrecht Marke, (ID = 829571) Citizen Linear Amplifier L92; Albrecht Marke, (ID = 829569) Citizen
Linear Amplifier L92; Albrecht Marke, (ID = 829568) Citizen Linear Amplifier L92; Albrecht Marke, (ID = 829570) Citizen
Use red slider bar for more.
Linear Amplifier L92; Albrecht Marke, (ID = 829571) Citizen
Albrecht Marke,: Linear Amplifier L92 [Citizen] ID = 829571 900x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model Linear Amplifier L92, Albrecht (Marke), Lütjensee:
Sammlung

Country:  Germany
Manufacturer / Brand:  Albrecht (Marke), Lütjensee
Brand

Alan Electronics
Year: 1990 ?? Category: Citizen Band Equipment

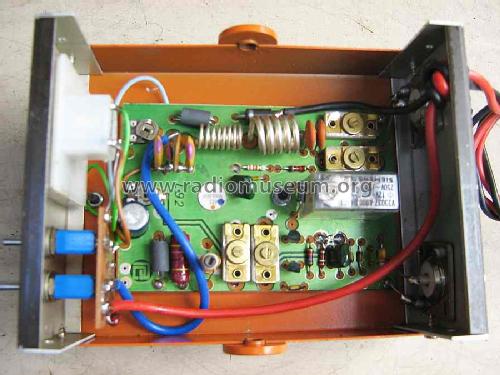

Semiconductors (the count is only for transistors) 3: BC237 BC237 MRF450
Main principle Radio Frequency Amplification only
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12-14 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Linear Amplifier L92 - Albrecht Marke, Lütjensee

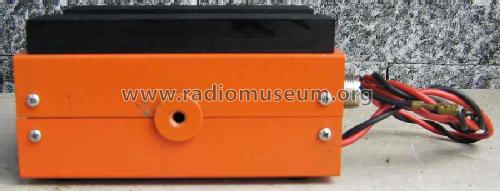

Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 100 x 70 x 155 mm / 3.9 x 2.8 x 6.1 inch
Notes Linear Amplifier L92 für den 27 MHz - Bereich, Wattanzeige, Schalter AM/SSB. Ausgangsleistung max. 100W.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
