• Country
• France

• Manufacturer / Brand
• Alfar Electronic; Paris

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 139611

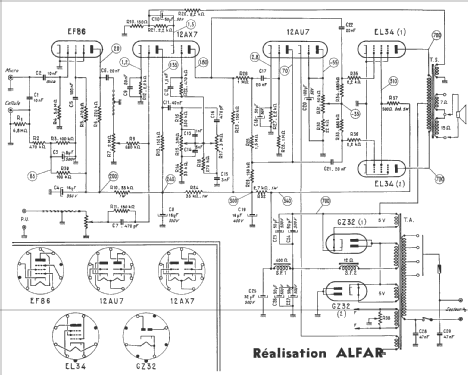

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 12AX7 12AU7 EL34 EL34 GZ32 GZ32

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 70 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

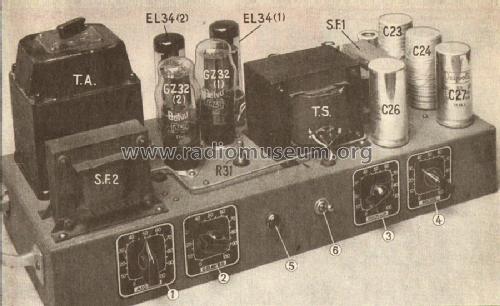

• Model: Amplificateur 70 Watts - Alfar Electronic; Paris

• Notes
• Push-Pull final EL34, sortie H.P. 7 ou 15 Ohms, 3 entrées ( Micro, Cellule et P.U.).

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1960

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
