Multi-Tester Model 5
Alic (brand)
- Country
- unknown Country
- Manufacturer / Brand
- Alic (brand)
- Year
- 1965 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 278879
- Wave bands
- - without
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Multi-Tester Model 5 - Alic brand
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

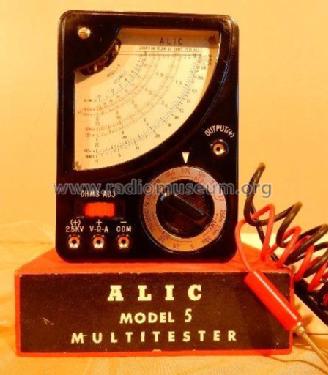

Alic Model 5 Multitester
Extra jacks "Output" and "2.5kV".
Specifications
- DC/V: 5, 25, 50, 250, 500, 2500 (20,000Ω/V)
- AC/V: 10, 50, 100, 500, 1000 (10,000Ω/V)
- DC/A: 50цA, 2.5mA, 250mA
- OHM: 0-60KΩ, 0-6MΩ
- Scale Centre: 300Ω, 30KΩ
- Capacitance: 10ццF to .001цF, .001цf to .1цF
- db: - 20 db to + 22 db
See also Sansei 200H
